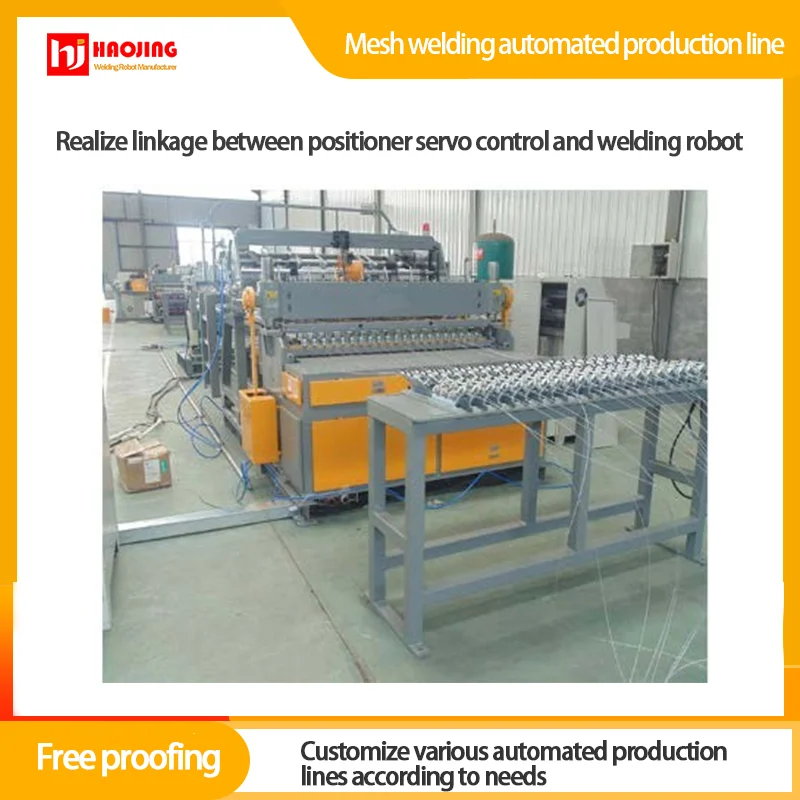

Mesh welding automated production line

The automated mesh welding production line is a fully automated welding system custom-designed by Shanghai Haojing Robotics to meet client specifications. After body welding, components undergo grinding and shot blasting treatment, followed by one coat of rust-proof primer and two coats of high-gloss paint, resulting in an elegant and refined appearance. The entire system employs water-circulation cooling, enabling 24/7 uninterrupted production. Its unique design achieves energy-saving efficiency. We also provide customized solutions including: – Elevator Door Panel Welding Production Lines – Air Conditioner Base Plate Welding Production Lines – Shock Absorber Welding Production Lines – Gas Spring Welding Production Lines – Automotive Production Lines – Non-Standard Production Lines – Industrial Production Lines – Intelligent Production Lines – Stamping Production Lines

Product Overview

The automated mesh welding production line undergoes grinding and shot blasting after body welding, followed by one coat of rust-proof primer and two coats of high-gloss paint. It features an attractive, elegant appearance with high paint adhesion. The entire equipment is constructed from thick steel plates and welded profiles, ensuring a robust and compact main structure. All components utilize reinforced bodies with appropriate material selection to prevent deformation.

Critical components utilize hard alloy materials with necessary heat treatment and anti-corrosion surface treatment, providing excellent rigidity. 45# steel undergoes heat treatment with chrome plating on the surface, paired with embedded bronze bushings, ensuring minimal wear even during 365*24-hour full-load operation. Springs are suspended on one side of the main beam for convenient overall adjustment and replacement.

Unique rail mounting technology exposes springs and electrodes externally, enabling effortless spring adjustment and replacement while simplifying electrode tip alignment; Italian high-alloy bronze with superior conductivity, heat resistance, hardness, and wear resistance delivers 2-3 times the lifespan of standard bronze alloys;

The transformer features copper internal wiring and Korean-imported silicon steel sheets. Its refined appearance is achieved through high-quality epoxy resin vacuum casting, ensuring superior sealing. The entire unit employs water-circulation cooling, enabling 24/7 uninterrupted production. Its unique design process delivers energy-saving benefits. Servo-driven material feeding allows a single load of 200-300KG of wire, reducing manual labor while preventing tangled or misaligned wires.
