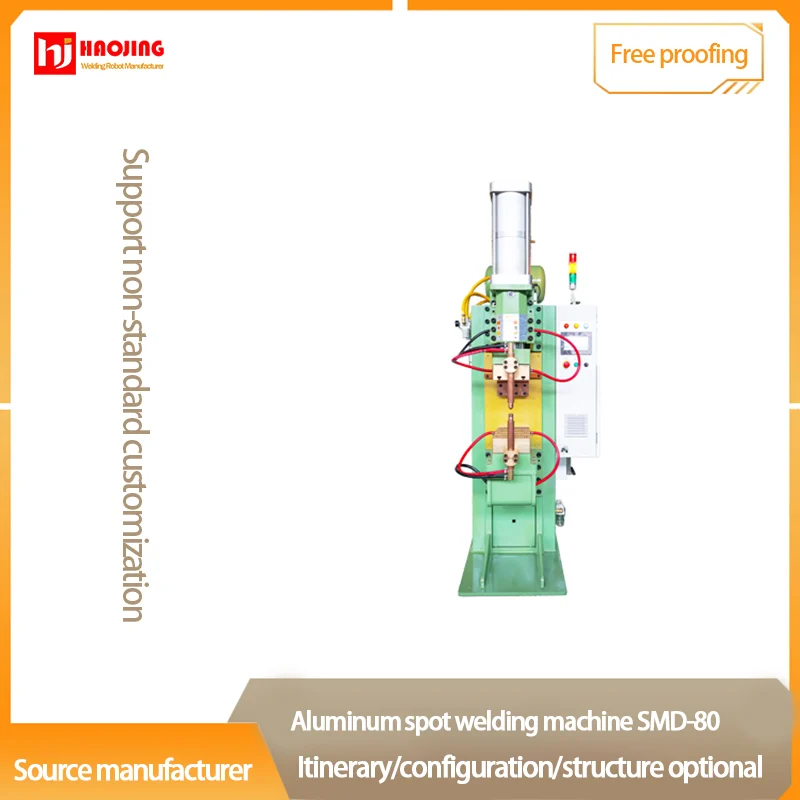

Aluminum spot welding machine SMD-80

Aluminum Spot Welder, Fully Automatic Aluminum Battery Spot Welder, Brand: Shanghai Haojing, Model: SMD-80, Rated Capacity: 200KVA, Maximum Short-Circuit Current: 80KA, External Power Supply: 380V/3φ, Duty Cycle: 50%, Maximum Working Pressure: 18/29KN, Electrode Stroke: 160MM, Cooling Water Flow Rate: 60L/MIN. Our SMD-80 medium-frequency inverter DC spot welder features fully digital control via a human-machine interface touchscreen for intuitive operation. Performance can be expanded through PC programming. Custom fixtures can be designed to accommodate diverse workpiece welding requirements, and automated special-purpose machines can be engineered to enhance production efficiency.
Product Overview:

The SMD-80 aluminum spot welder represents the current state-of-the-art in welding equipment. Its welding transformer features a compact size with high output energy. By elevating the transformer frequency from standard 50/60Hz to 1000Hz, it significantly reduces core material weight. Additionally, rectifier diodes in the secondary circuit convert AC to DC power for the welder, substantially improving secondary inductance values and saving over 30% in user power consumption. All our aluminum spot welders feature digital control via a user-friendly touchscreen interface, ensuring intuitive operation. Performance can be expanded through PC programming. Custom fixture designs accommodate diverse workpiece welding requirements, and we develop automated special-purpose machines to enhance production efficiency.
Four Key Features of Haojing Welding Machines:

Haojing aluminum spot welders excel in stability, precision, energy efficiency, user-friendliness, and automation. Built upon German industrial technology and incorporating globally leading innovations like Siemens control systems and Taiwan’s Weintek operator interfaces, they lead the forefront of welding equipment R&D and manufacturing.
Wide Material Compatibility
Offers broader welding capabilities than AC welders, processing aluminum, aluminum alloys, copper, low-carbon steel, stainless steel, galvanized sheet metal, and more with exceptional adaptability.
Energy Efficiency
Consumes 30% less power than AC welders. Features balanced three-phase input, precise current output, and minimal secondary circuit energy loss, ensuring stable welding with reduced grid impact and enhanced energy savings.
User-Friendly Operation
Features a human-machine interface for precise, rapid, and comprehensive control and analysis of welding parameters. Performance can be expanded via PC programming, effectively boosting welding efficiency.
High Welding Efficiency
Achieves millisecond-level welding cycles, producing aesthetically pleasing surfaces that require no grinding. Significantly reduces labor costs while enhancing both productivity and quality.
Comparison Between Aluminum Spot Welders and AC Spot Welders:
1. Superior welding stability;
2. Over 40% energy savings with low operating costs;
3. Balanced three-phase power input achieving up to 95% power factor;
4. Reduced welding current and electrode pressure requirements;
5. Minimal inductive energy loss in secondary circuits;
6. Doubled electrode lifespan with reduced grinding time;
7. Substantially reduced installation costs for electrical systems and auxiliary facilities like water/air supply;
8. More precise, rapid, and comprehensive control/analysis of welding parameters;
9. Shorter welding cycles for improved productivity and weld quality;
10. Broader welding applications with superior results on low-carbon steel, stainless steel, copper, aluminum, and galvanized sheet metal.
